How to get song information from Power Studio XML file?

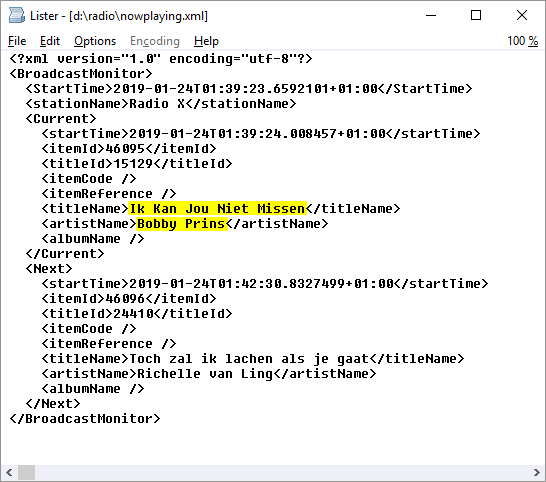

The Power Studio automation produces a text file with current song title and artist. The file has an XML structure as shown in this example:


From version 3.8c the Magic RDS control software includes direct support for XML:

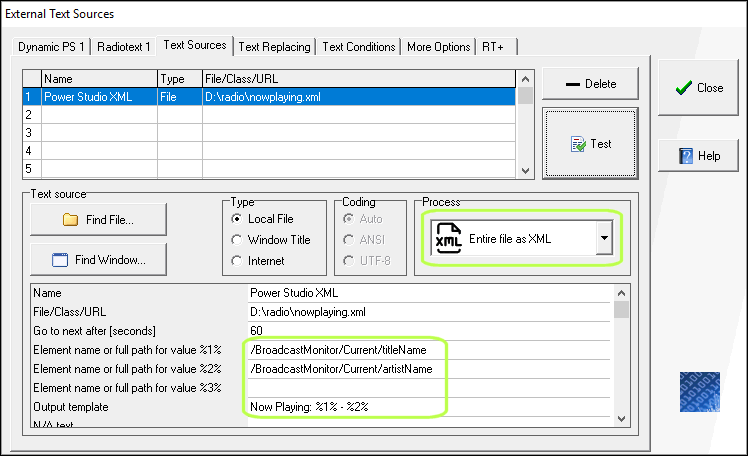

  1. Open the External Text window, select Text Sources card and define new text source:
  2. Select the Power Studio XML file. In the Process dropdown list select the XML option.
  3. Fill the element full paths:
    /BroadcastMonitor/Current/titleName as value %1%,
    /BroadcastMonitor/Current/artistName as value %2%.
    Fill the output template: Now playing: %1% - %2%
  4. Click on the Test button:


    Yes, it's okay!
