How to change Radiotext message in a predefined time?

Use this method if there's no permanent connection between the Magic RDS and the RDS encoder.

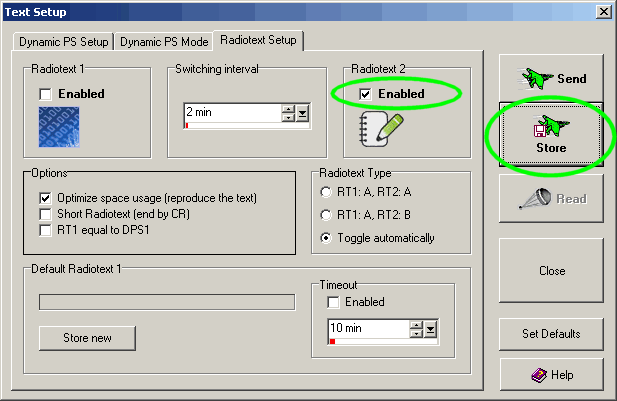

1. Click on RDS Encoder - Text setup and enable the Radiotext 2, click Store:


2. Type the text to be scheduled in the Messages sheet, click Store:


3. Open the Internal Scheduler window:

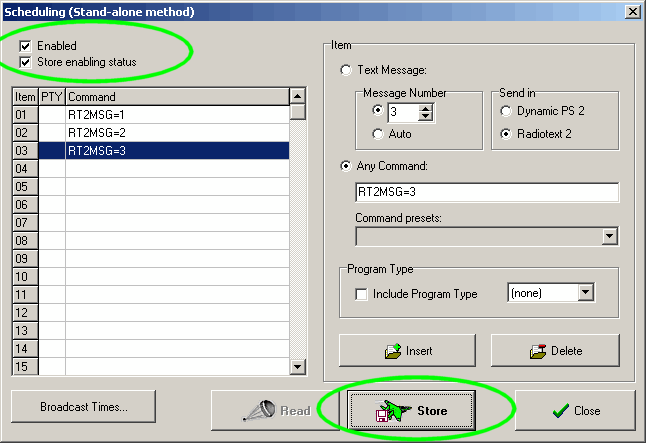

4. Add the first item - Message Number 1, Send in Radiotext 2, click Insert:

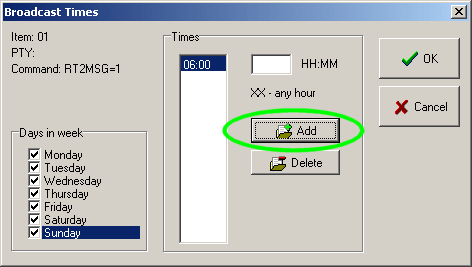

5. Set the days and times for the item, click OK:


6. Insert other items using the same way. There's an item for each text message:


7. Click Store. You'll see the result of your work firstly when actual time matches with any of the item inserted.

Note: Any item inserted with the Text Message option is automatically converted into appropriate ASCII command.
